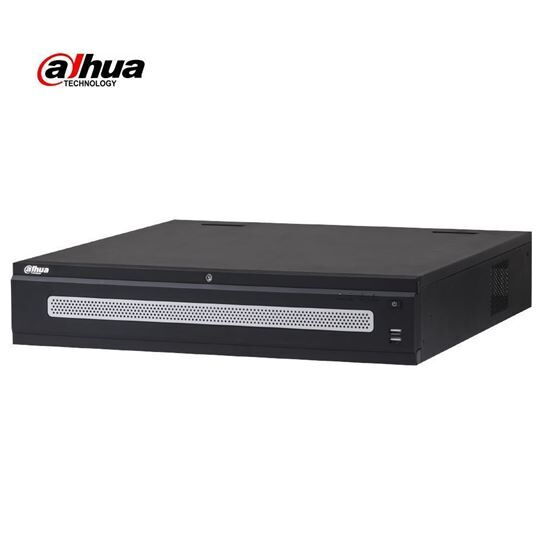

www.dahuasecurity.com DHI-NVR608H-128-XI 128 Channels 2U 8HDDs WizMind Network Video Recorder · 32-channel 1080p self-adaptive decoding capability. · Max. 1024/1024/800Mbps incoming/recording/outgoing bandwidth. · Supports N+M cluster. · Support Raid0/1/5/6/10. · Drawer-like chassis design allows for HDD hot swapping. · AI by recorder: 4-channel face detection and recognition; 8-channel metadata; 24-channel perimeter protection; 32-channel SMD Plus. · AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, and people counting. Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals. Functions Perimeter Protection Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy. Face Recognition Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database to recognize the person identity. | DHI-NVR608H-128-XI SMD Plus With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm. Video Metadata With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes. Heat Map by Camera Dahua heat map technology is used to display the crowd density and people appearance probability. Export and display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions. ANPR by Camera With deep learning algorithm, Dahua ANPR technology can recognize the number plate information of vehicles in the image with ANPR cameras. Support blocklist/allowlist mode, searching target vehicles from recorded video. Series Overview As a new generation of network video recorders, NVR600-XI series offers high-grade recording technology and has AI capabilities that are ideal for IP video surveillance applications. This enterprise-level NVR has a powerful processor, built-in deep learning modules, and video metadata technology. It also comes with high-precision human face recognition, perimeter protection and 4K resolution, which together shorten the response time to events and provide critical information that allows surveillance personnel to take immediate action. This NVR is compatible with numerous third-party devices, making it a perfect solution for surveillance systems with or without a video management system. www.dahuasecurity.com Technical Specification System Main Processor Industrial-grade processor Operating System Embedded Linux Operating Interface Web, Local GUI AI AI by Recorder Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus AI by Camera Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; object monitoring Perimeter Protection Perimeter Performance AI by Recorder (Number of Channels) 24 channels, 10 IVS rules for each channel Perimeter Performance of AI by Camera (Number of Channels) 64 channels Face Detection Face Attributes Gender; age group; glasses; expressions; face mask; beard Face Detection Performance of AI by Recorder (Number of Channels) 4 channels (up to 12 face images/second/channel) Face Detection Performance of AI by Camera (Number of Channels) 64 channels Face Recognition Face Database Capacity Up to 40 face databases with 300,000 images, with a total capacity of 48 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. Face Recognition Performance of AI by Recorder (Number of Channels) 1. 20 channels FD (by camera) + FR (by recorder), image stream: 20 face images/s 2. 4 channels FD (by recorder) + FR (by recorder), video stream: 12 face images/s Face Recognition Performance of AI by Camera (Number of Channels) 64 channels SMD Plus SMD Plus by Recorder 32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change SMD Plus by Camera 64 channels Video Metadata Metadata Performance of AI by Recorder (Number of Channels) 8 channels Metadata Performance of AI by Camera (Number of Channels) 32 channels Human Attributes Top color, top type, hat, bag, age, gender and umbrella Motor Vehicle Attributes License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling, Non-motor Vehicle Attributes Vehicle model, vehicle color, number of persons, helmet. Vehicle License Plate Comparison ANPR by Camera (Number of Channels) 32 channels License Plate Database Capacity Blocklist and allowlist: 20,000 Audio and Video Access Channel 128 channels Network Bandwidth AI disabled: 1024 Mbps incoming, 1024 Mbps recording and 800 Mbps outgoing AI enabled: 512 Mbps incoming, 512 Mbps recording and 400 Mbps outgoing Resolution 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1 Decoding Capability 2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 8-channel 8 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps; 72-channel 720P@30 fps 160-channel D1@30 fps Video Output 2-channel VGA, 4-channel HDMI video output. Simultaneous mode: max. resolution of VGA1 and VGA2 is 1080p, max. resolution of HDMI1 and HDMI2 is 4K max. resolution of HDMI3 is 8K max. resolution of HDMI4 is1080p Heterogeneous mode: Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 max. resolution of VGA1 and VGA2 is 1080p, max. resolution of HDMI1, HDMI2 and HDMI3 is 4K max. resolution of HDMI4 is 1080p Multi-screen Display Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16/25/36 Third-party Camera Access ONVIF; Sony; Axis; Arecont; Pelco; Canon; Samsung Compression Standard Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG Audio Compression G.711a; G.711u; PCM; G726 Network Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; ISCSI Mobile Phone Access iOS; Android Interoperability ONVIF (Profile S/profile T/Profile G); CGI; SDK Browser Chrome IE 9 or later Firefox Network Mode Multi-address mode, load balance, fault tolerance and other network port binding modes Recording Playback Multi-channel Playback Up to 16 channels Record Mode Manual; alarm; motion detection; scheduled Backup Method Portable hard drive, eSATA disk, burner, USB device and network Playback Mode 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off | DHI-NVR608H-128-XI www.dahuasecurity.com Storage Disk Group Yes RAID RAID 0/1/5/6/10 Hot Swapping Yes Alarm General Alarm Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan Intelligent Alarm Face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map Alarm Linkage Record; snapshot; IPC external alarm output; buzzer; log, preset; email Port Audio Input 1-channel RCA Audio Output 2-channel RCA Alarm Input 16 channels Alarm Output 8 channels HDD Interface 8 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature. eSATA 1 RS-232 1 RS-485 1 × A/B USB 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) HDMI 4 VGA 2 Network Port 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45) General Power Supply 100–240 VAC, 50/60 Hz Power Consumption <18 W (without HDD) Net Weight 6.4 kg (14.11 lb) (without HDD) Gross Weight 8.59 kg (18.94 lb) (without HDD) Product Dimensions 440.0 mm × 458.4 mm x 94.9 mm (17.32" × 18.05" × 3.57") (W × D × H) Packaging Dimensions 571.0 mm × 499.0 mm × 211.0 mm (22.48" × 19.65" × 8.31")(W × D × H) Operating Temperature –10 °C to +55 °C (14 °F to +131 °F) Operating Humidity 10%–93% (RH) Installation Rack or desktop Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014+A11:2017 Ordering Information Type Model Description 128 Channels WizMind NVR DHI-NVR608H128-XI 128 Channels 2U 8HDDs WizMind Network Video Recorder Accessories ESS1504C 4 HDDs eSATA Storage | DHI-NVR608H-128-XI Accessories ESS1504C 4 HDDs eSATA Storage Dimensions (mm[inch]) mm [inch] 95.0 [3.74] 452.0 [17.80] 459.6 [18.10] 444.0 [17.48] www.dahuasecurity.com Panels 1 4 5 6 7 8 9 10 11 2 3 1 Alarm In/Out 2 RS-232 Port 3 AUDIO OUT, RCA Connector 4 Power Input 5 Power Switch 6 Network Ports 7 USB Ports 8 eSATA Port 9 HDMI Ports 11 AUDIO IN, RCA Connector 10 VGA Ports Rev 002.000 © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. | DHI-NVR608H-128-XI
