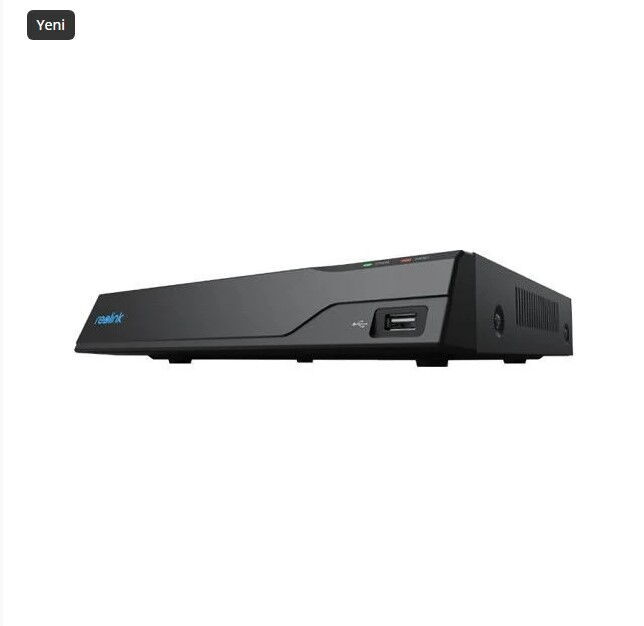

NVS16

16-Channel PoE NVR for 24/7 Continuous Recording

Support up to 16MP

Power over Ethernet

16-Channel

4TB HDD Built-in

Specifications

Hardware

Hardware

4TB HDD: N6MB01

Video/Audio Input

IP Video Input

PoE IP camera x 16

Audio Input

Cameras with built-in mic

Video/Audio Output

Video Output

VGA, HDMI

Display Resolution

• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768

• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768

Audio output

1-channel, RCA

Decoding

Live View / Playback Resolution

7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p

Video Format

H.265, H.264

Synchronous Playback

Up to 4 channels

HDD

SATA

2 x SATA interface (1 x 4TB HDD included)

Capacity

Up to 12TB (max. 6TB capacity for each HDD)

External HDD

No

External Interface

USB Interface

2 x USB 2.0

Network Interface

• 1, RJ-45 10/1000 Mbps self-adaptive Ethernet interface for LAN/WAN

• 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port

25W

Supported Standard

IEEE 802.3 af/at

Network

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS,
DDNS, NTP, FTP

Browser Supported

Firefox, Chrome, Edge, Safari

OS Supported

PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply

DC 48V~54V

Power Consumption

<10W (without HDD & PoE)

Working Environment

Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

Dimensions

330 x 45 x 285mm

Weight

2.4kg
